Understanding Vacuum Circuit Breakers and Contactors in Electrical Engineering

By: admin

Introduction

In electrical engineering, both vacuum circuit breakers (VCBs) and vacuum contactors play crucial roles in managing electrical circuits. While they may seem similar, they serve distinct purposes and operate differently. This article explores the key differences between vacuum circuit breakers and vacuum contactors.

Vacuum Circuit Breaker (VCB)

A vacuum circuit breaker is a type of circuit breaker where the arc quenching takes place in a vacuum. It is primarily used for medium voltage applications. These are primarily used for switching, interrupting fault current and protecting electrical system.

Here are some key features:

  • Construction: VCB`s consist of fixed and moving contacts enclosed in a vacuum interrupter. The vacuum provides a high insulating strength, making it an efficient medium for arc extinction.

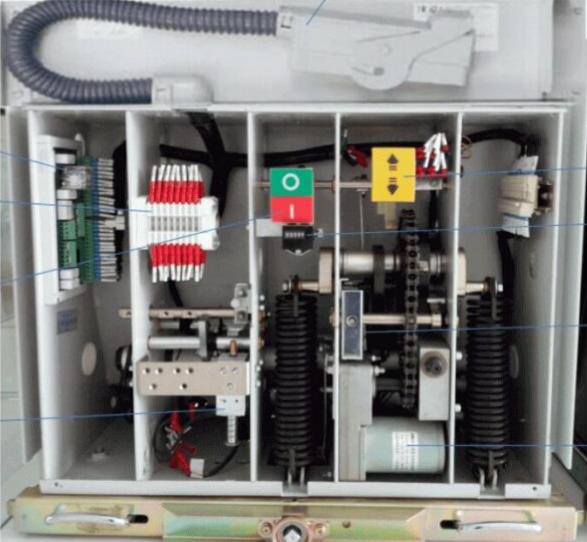

  • Operating Mechanism: – VCB`s work on the principle of stored energy mechanism, where energy is stored in springs to operate the contacts. A lot of moving parts can cause wear and tear in the operating mechanism.
  • Applications: VCB`s are used in power distribution systems, industrial plants, and other medium voltage applications where reliable arc extinction is crucial.

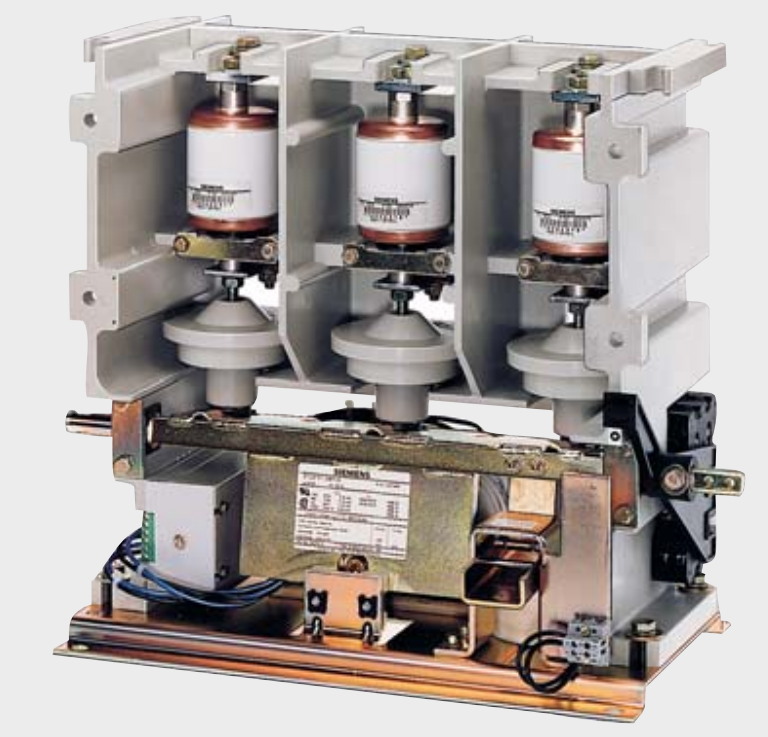

Vacuum Contactor

A vacuum contactor, on the other hand, is designed for frequent switching of electrical circuits, particularly in medium voltage applications. It is commonly used in motor control and other industrial applications for switching operations. Vacuum contactors are generally adopted along with HRC fuses for interrupting fault currents.

 Key features include:

  • Construction: Like VCBs, vacuum contactors have contacts enclosed in a vacuum. However, they are designed for frequent switching operation and can handle electrical loads up-to a range of 600-800A.
  • Operating Mechanism: -Vacuum contactors uses electromagnet to latch and/or unlatch the contacts which helps in no/less wear and tear and improves reliability in dusty areas.
  • Applications: They are used in motor control, capacitor switching, heating and lighting control.

Key Differences

  1. Purpose
    • VCB: Primarily used for switching as well as interrupting fault currents and protecting electrical systems.
    • Vacuum Contactor: Designed for frequent switching of electrical circuits, particularly in motor control applications.
  2. Operation
    • VCB: Energy stored in spring releases the switching contacts and designed to interrupt high fault current
    • Vacuum Contactor: Uses Coil to magnetically latch/unlatch the switching contacts. Vacuum contactors are adopted along with HRC fuses to interrupt fault current.
  3. Applications
    • VCB: Used in medium voltage power distribution and industrial plants.
    • Vacuum Contactor: Used in motor control and industrial machinery requiring frequent switching.

Conclusion

While both vacuum circuit breakers and vacuum contactors utilize vacuum technology for arc extinction, their applications and operational principles differ significantly. Understanding these differences is crucial for selecting the appropriate device for specific electrical engineering needs.
